Ski Goggle: Len Curvature Engineers to Beauty and Vision
Have you wonder what makes ski goggle looking so good with clear vision while making flip, Air, Carving and more.The engineered what exactly are those lens curve, that are engineered to make the fashion and the outcome that meet with air flow and ergonomic design for most of for top ski athletes.
There are two major type of len: sphere and cylinder.
Spherical Lens: curve both horizontally and vertically.

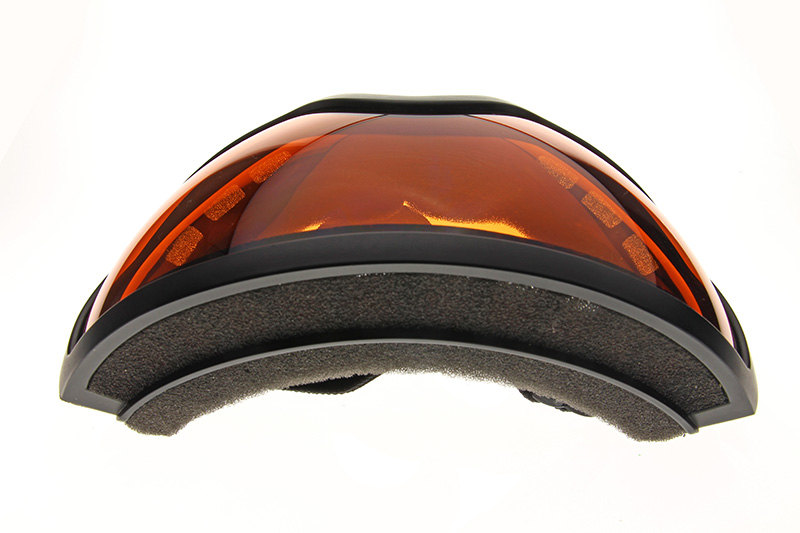

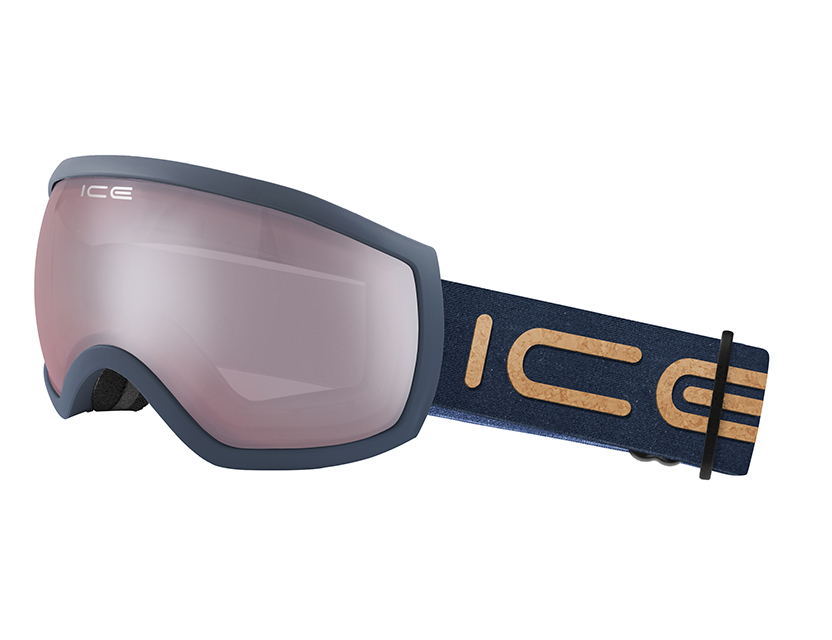

Product Example SM101: Sphere Len, 5 CurveCylindrical lens: curve horizontally while remain vertical flat.
Cylinder Len: Curve horizontally

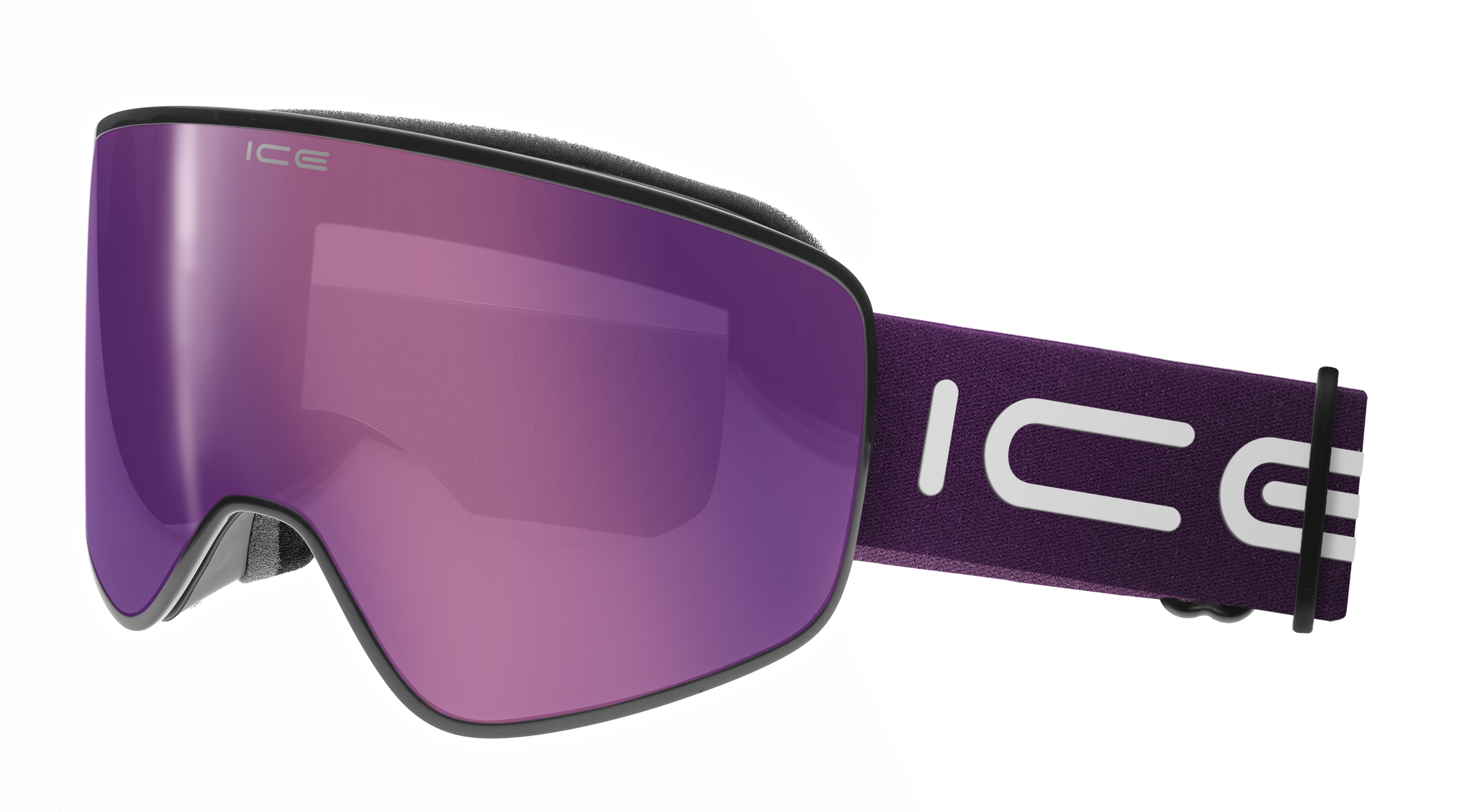

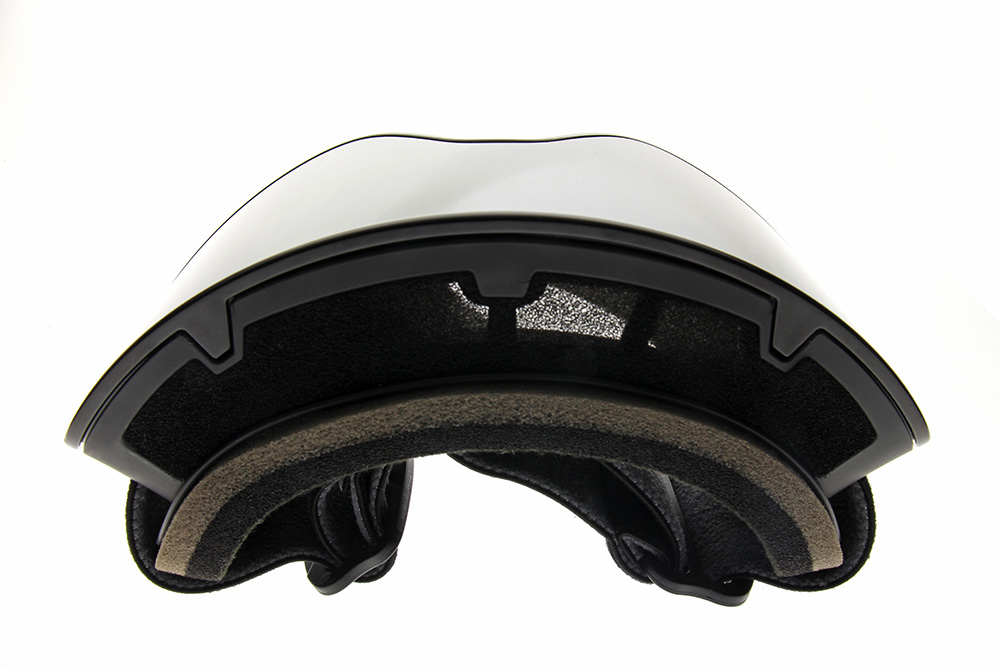

SM158: Cylinder Len. 5 base curvature, 1.3 mm.
Both of Sphere Len and Cylinder creates interesting fashion goggle view.
In term of Manufacturing

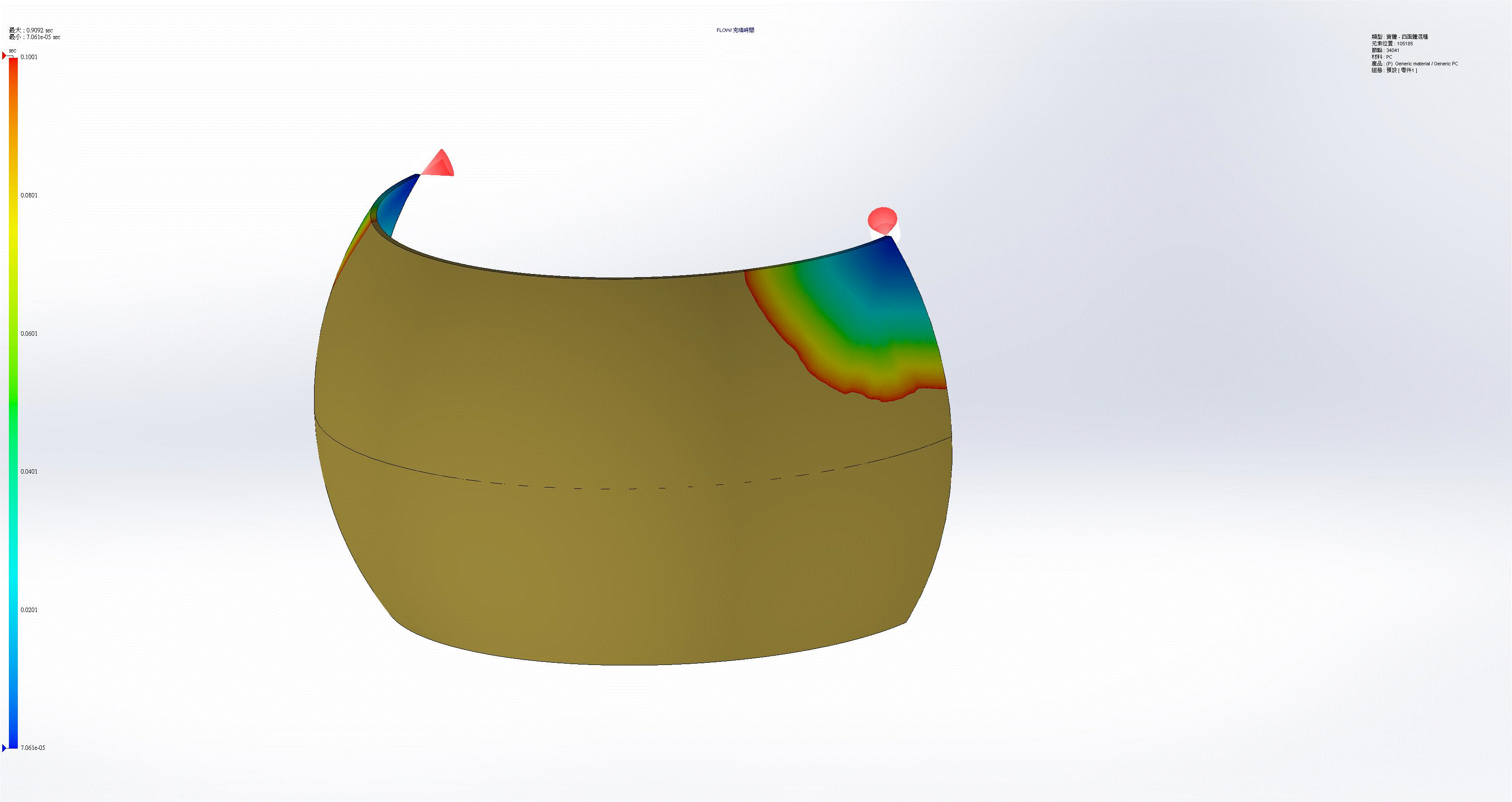

Mold Flow for Sphere Len
Len Specification: PC material, 1.3 mm, 5 base curvature , Sphere Len.

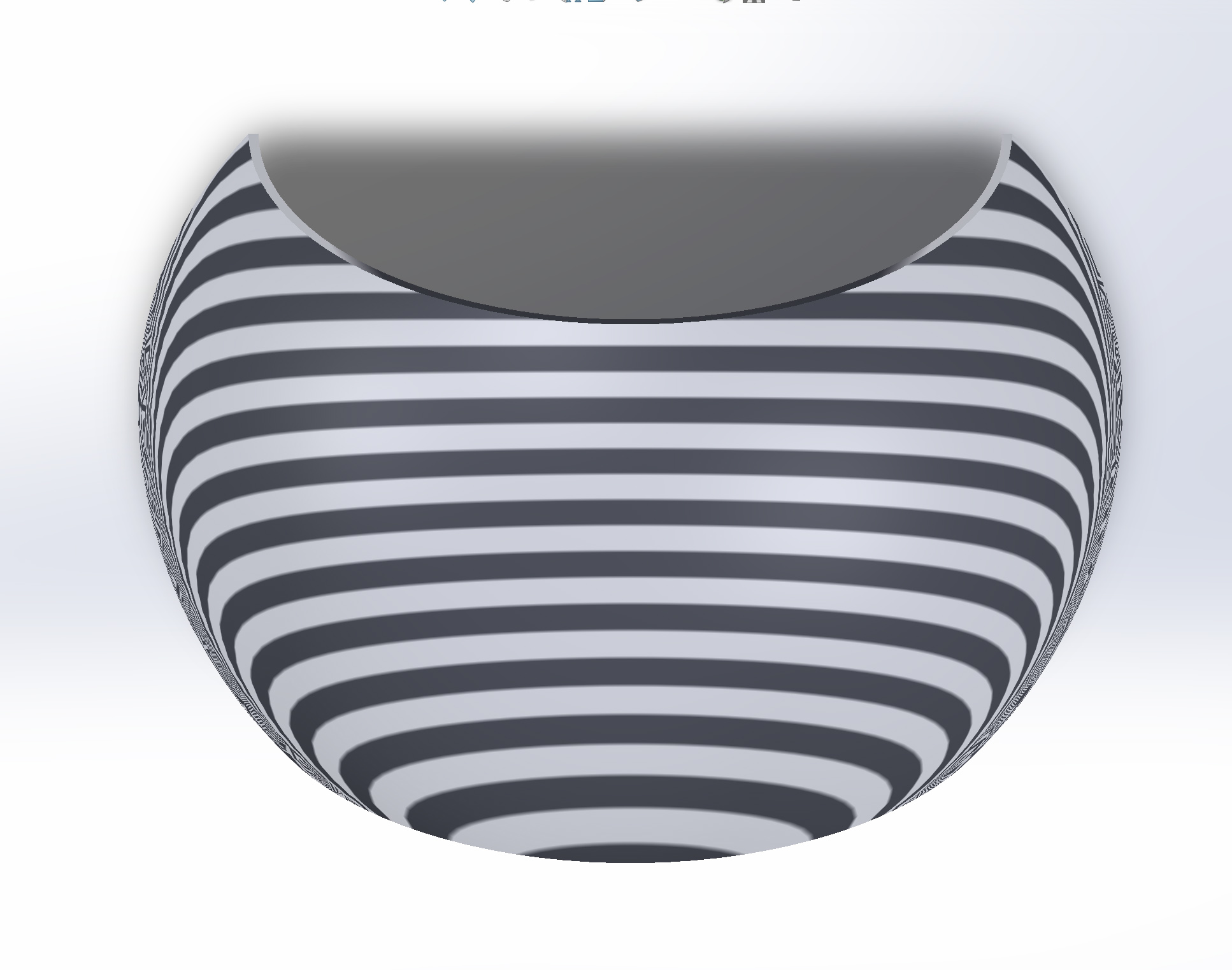

Sphere Zebra Print
Mold Flow for Cylinder Len
Len Specification: PC material, 1.3 mm thickness , 5 base curvature, Cylinder Len

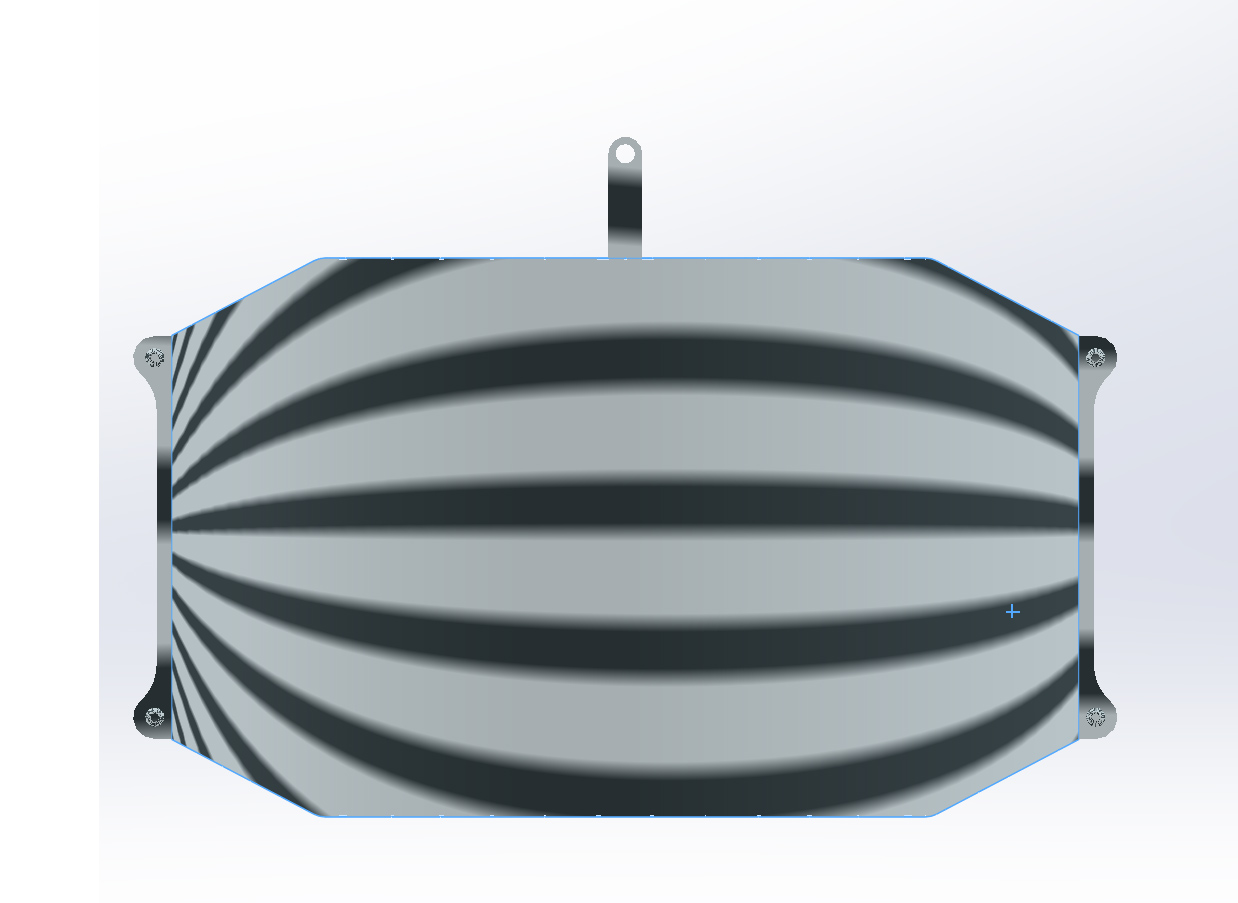

Zebra Print
Manufacturing view
Sunmax Optical Co., Ltd
List of Len Curvatures.
Design your most intriguing ski goggle contact Sunmax.
We are more than happy to send you len sample to make design of yours.
Contact with us to help you designing a new ski goggle len mould.
We have comptent CNC tool and computer aided curve machine for your custom len.
5.0 Curvature |
Sphere Len |
5.2 Curvature |
Cylinder Len |
5.5 Curvature |
Cylinder Len |
5.5 Curvature |
Sphere Len |
6.0 Curvatur |
Sphere Len |
6.0 Curvature |
Cylinder Len |
5.7 x 3.5 Curve |
Toric Len |
